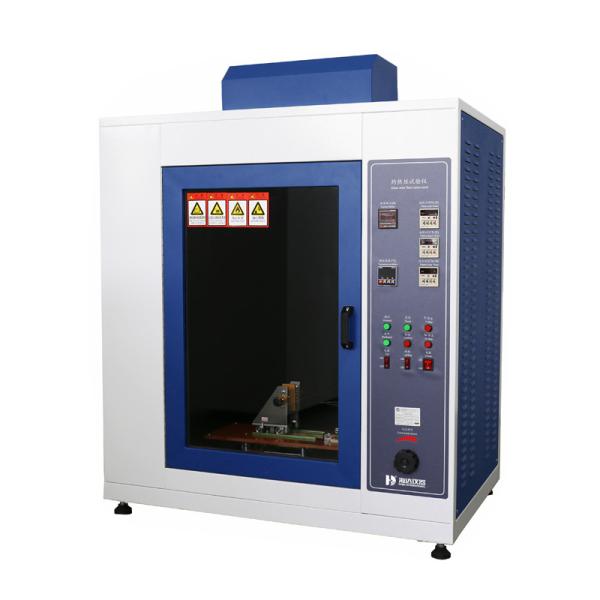

Button-Controlled Glow Wire Test Machine IEC60695 & GWIT / GWFI Test

Name: ButtonControlled Glow Wire Test Machine IEC60695 amp GWIT GWFI Test
Brand: Haida
Price: 1 USD

Brand Name : Haida

Model Number : 6001-HD

Certification : CE,,ISO

Place of Origin : China

MOQ : 1

Price : Negotiation

Payment Terms : L/C, T/T, D/A, D/P, Western Union, MoneyGram

Supply Ability : 300 Sets per Month

Delivery Time : 20 days after order confirmed

Packaging Details : each set protected with resin fiber and PP film, then put into Strong wooden case with operation man

Chamber Volume : ≥0.5 cubic meters, equipped with a glass observation door

Chamber Illumination : Less than 20 LUX

Force Applied by Glow-Wire on Sample : 0.95 ± 0.10N, with an insertion depth limit of 7.0mm ± 0.5mm

verall Dimensions (L×W×H) : Approx. 1015×650×1300mm (including caster height)

Power Supply : AC 220V,50Hz,1KVA

Contact Now

Glow-Wire Test Instrument

In fault or overload conditions, components or parts may reach excessive temperatures or ignite nearby components.

The glow-wire test simulates the thermal stress caused by a glowing element, overloaded resistor, or similar heat or ignition source over a short period. It is used to assess the fire hazard risk using simulation techniques.

This test applies to electrical and electronic products, components, household appliance parts made of plastics, and non-metallic insulation materials, such as switch casings and relay sockets.

IEC60695-2-10 / 11 / 12 / 13, IEC60884-1, GB2099.1, IEC60335-1, GB4706.1, VDE0620-1, UL60065, GB/T5169.10 / 11 / 12 / 13, IEC60950, GB4943-2022

Model	6001-HD
Chamber Volume	≥0.5 cubic meters, equipped with a glass observation door
Chamber Illumination	Less than 20 LUX
Glow-Wire Temperature	Adjustable from ambient temperature +10ºC to 1000ºC, measured using a Ø1mm nickel-chromium (K-type) imported thermocouple
Force Applied by Glow-Wire on Sample	0.95 ± 0.10N, with an insertion depth limit of 7.0mm ± 0.5mm
Glow-Wire Material	Nickel/chromium alloy (>77% Ni / 20±1% Cr), with a pre-bending diameter of 4.0 ± 0.07mm; other dimensions conform to standard tolerance requirements
Timer	Adjustable from 0 to 99 minutes 99 seconds, with a resolution of 0.01 seconds. Records ignition time (Ta), flame persistence time (Ti), and flame extinction time (Te)
Wooden Board	White pine board, thickness >10mm, positioned 200±5mm below the sample's contact point with the glow-wire.
Product Features	Fully automated control system: Once started, the sample-holding carriage automatically moves the sample to the glow-wire and returns it after the preset glow duration.
	Black background interior for easy observation.
	Equipped with an exhaust system and lighting.
	Digital display for time and temperature, ensuring convenient observation and recording.
verall Dimensions (L×W×H)	Approx. 1015×650×1300mm (including caster height)
Power Supply	AC 220V,50Hz,1KVA

Moel6001

Button-Controlled Glow Wire Test Machine IEC60695 & GWIT / GWFI Test

About us

Haida International Equipment Co,Ltd was established in 2004, located in Dongguan city, Guangdong Province, China, is specialized in production and R&D of various material physical properties testing equipment. We have our own independent research and development center and four testing equipment production lines: textile, footwear, leather, mask. In 2006, textile, footwear, leather mask testing equipment officially put into production and entered the international market.

Button-Controlled Glow Wire Test Machine IEC60695 & GWIT / GWFI Test

Why choose us?
1.Design & Production : Solution Consultation for each order
Recommend the most cost -performance machine
Research & Develop the suitable one for Special- designed Model.
2.Shipping & Delivery: One-Stop Service
Production- Deliver to your door - Installation & Training- Technical Support
3.Warranty
1 year warranty with lifetime technology support
4.After-Sale Service
React within 2 Hours
Video inspection & on-site service combined

FAQ

Q: How about your warranty?

A: Generally, our warranty is one year. Within the warranty period, we can offer technique support and part parts change, if it's necessary, our engineers may go to your place for better service.

Q: What is the order process?

A: Get Inquiry - Send the Quotation - Confirm the requirements - Order confirming - Payment - production - testing and debugging- packing - Confirm with customer about the necessary documents- Arrangement the Delivery - Send the product out - Customer Receiving - After Service.

Q: Can we visit your factory before order?

A: Yes, we warmly welcome and sincerely invite you and your team to visit our factory, we will help to arrange hotel and pick up you from airport.

Q: Do you accept customization service?

A: Yes, of course, we can not only offer standard machines, but also customized machines according to your request. Don't hesitate to tell us your requirement, we will do our best to meet your needs.
