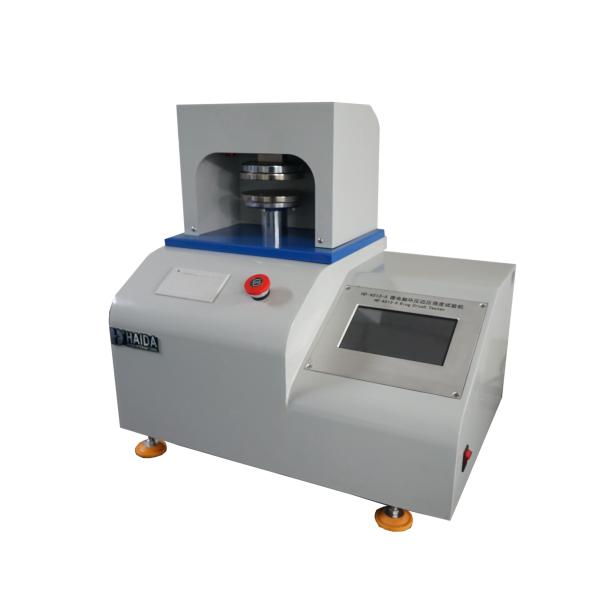

Precision Paper Testing Equipment / Cardboard Ring Crush And Edge Compressive Tester

Name: Precision Paper Testing Equipment Cardboard Ring Crush And Edge Compressive Tester
Brand: Haida
Price: 1 USD

China Precision Paper Testing Equipment / Cardboard Ring Crush And Edge Compressive Tester wholesale

Brand Name : Haida

Model Number : HD-A513-2

Certification : ISO

Place of Origin : China

MOQ : 1set

Price : Negotiable

Payment Terms : L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow

Supply Ability : 300 Sets per Month

Delivery Time : 20 days after order confirmed

Packaging Details : each set protected with resin fiber and PP film, then put into Strong wooden case with operation man

Name : Ring Crush And Edge Compressive Tester

Capacity : 10, 20, 50, 100, 200 kg

Resolution : 1/100,000

Precision : < 0.5%

Dimension : 570×415×730 mm

Power : AC220V, 1.5A

Contact Now

Cardboard Ring Crush And Edge Compressive Tester ISTA Packaging Testing

The usage
Cardboard ring crush tester can do a full range of tests, which include Ring Crush Testing, Flat Crush testing, Edge Compressive Testing, Adhensive Strength Testing and other general compression tests, to a variety of materials like paper, packaging materials, etc. It is a multi-functional testing equipment.

The main technical parameters are as follows

Capacity (Optional)	10, 20, 50, 100, 200 kg
Resolution	1/100,000
Precision	< 0.5%
Operation Mode	Computer
Display Mode	LCD
Platen	100×100 mm or depending on the diameter of the flat crush sample
Compressed Space	500 mm
Platen Parallelism	± 0.05 mm
Ring Crush Sample	152×12.7 mm
Edge Crush Sample	25×100 mm
Test Speed	12.7 mm/min
Dimension (L×W×H)	790×510×1060 mm
Weight	Approx. 51 kg
Power	AC220V, 1.5A

Product Tags:

paper and packaging material testing instruments

paper bursting strength tester

Precision Paper Testing Equipment / Cardboard Ring Crush And Edge Compressive Tester Images
